Pyrowell G-2
Part Code: Pyrowell G-2
Highly Accurate Portable Infrared Non-Contact Pyrometer
350°C to 1800°C
- Spectral Range:1.6 μm
- Photodetector Type: InGaAs
- Accuracy: ± 0.3% of measured value or ± 3°C whichever is greater
- Response Time: 250 msec adjustable upto 10 sec
- Analog Output: 4 – 20mA (Two Wire)
- Digital Output: USB 2.0
Pyrowell G-2 is specially designed highly accurate digital IR Fibre Optic pyrometer with ceramic tube which provides high performance and low maintenance of non contact temperature measurement of coke oven temperature.

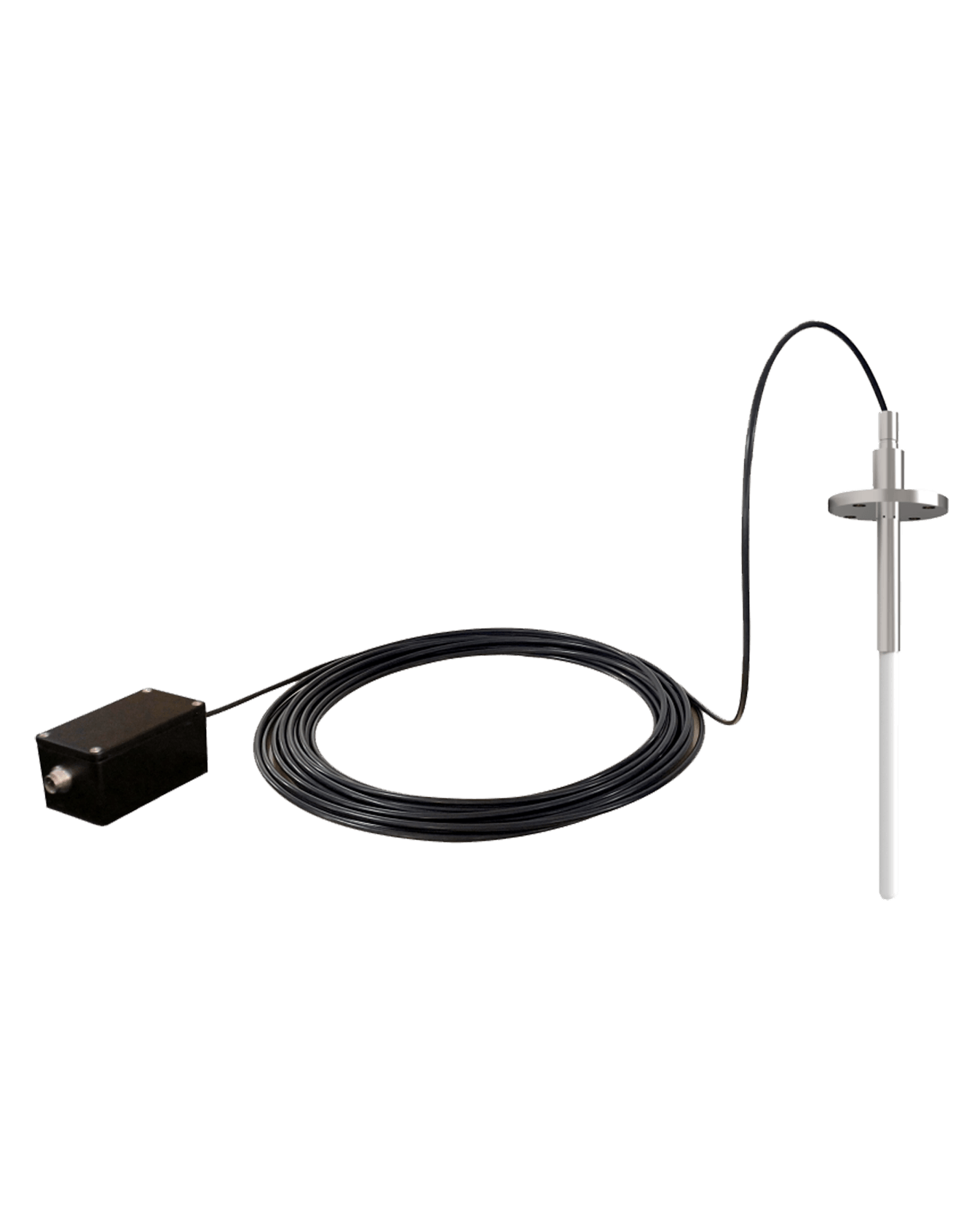

Pyro-well G-2 is a combination of IR non-contact sensor & one end closed sighting tube like Thermowell. In Optical head on top of the ceramic well is connected to a fibre optic cable and the other end is connected to electronics.
The sighting tube is made up Ceramic which protects IR sensor from excessive pressure, material velocity & corrosion. Ceramic tube is unaffected by dust, fumes & gases etc. hence measures accurate temperature.
The rugged fiber optic cable is designed to withstand high ambient temperature in cement industry without water cooling. Emissivity, Subrange, Response time can be preset ex-works or adjusted through software. This enables the instruments to be adapted to various measuring tasks. The particular IR Pyrometer model has small optical head which placed before the flange so it will not affected by external
factors even if ceramic tube breaks.
| Temperature Range (Analog sub-range adjustable) | 350°C to 1800°C |
| Spectral Range | 1.6 μm |
| Photodetector Type | InGaAs |
| Distance to Spot Size Ratio | 200:1 (Min Spot Size 11mm) |
| Emissivity (ε) | 0.05…..1.0 adjustable via DIP switch |
| Response Time | 250 msec adjustable upto 10 sec |
| Accuracy | ± 0.3% of measured value or ± 3°C whichever is greater |
| Repeatability | ± 0.2% of reading in °C + 1°C |
| Analog Output | 4 – 20mA (Two Wire) |
| Digital Output | USB 2.0 |
| Operating Temp. Range | Pyrometer 0°C….70°C(Electronics) Optical head and Fibre Optic max 250°C |
| Storage Temp. Range | -20°C…70°C |
| Adjustable Parameters and Features via Software | Response Time, Analog Scale (Sub Range), Unit Of Temperature (°C/°F) etc |
| Power Supply | 24 V DC (Looped) |
| Power Consumption | Max 0.5 watt |
| Protection Class | IP65 |
| Housing | Optical head-Stainless Steel, Electronic Box: Aluminium |
| Operating Humidity | 10-95%, non condensing conditions |
| Weight & Dimensions | 0.500 Kg 112.5mmx82.5mmx33mm(L x W x H) |
| Length below Flange | 1000 mm |
- Two Wire Designed IR Pyrometer with fibre Optics
- Temperature measurement from 350°C…1800°C
- Spectral range 1.6 μm
- Analog Output 4-20mA (Two Wire)
- USB 2.0 Digital output
- Highly accurate 0.3% of measured value
- Fast response time of 250 msec
- Fibre optic withstand ambient temperature upto 250°C
- Very good stability
- User friendly PC software
- Ceramic Tube
- Replacement fiber optic (PTFE) cable 5 M
(Reference no: 5000-02) - Power supply Input 110/230V AC
Reference No. 9000 – 02
Output 24 V DC, 0.7Amp.
- Temperature Indicator
(Reference no: 9000-01)
- Extra cable lengths
- USB cable
