Electrical Heating Solutions

Pricing depends on furnace specifications such as operating temperature, chamber size, heating element type, control system, and optional features. For a detailed quotation, please contact Tempsens at [email protected] or call +91-9358849603 .

A high-temperature furnace can achieve considerably higher operational temperatures (1400 to 1800 °C) than a non-high-temperature furnace. Therefore, they have lower mass, and, consequently, require less energy to heat up quickly. This results in improved thermal efficiency and quicker heat-up times compared to a traditional industrial furnace. High-temperature furnaces are also designed with an emphasis on specialized heat treatment applications, such as sintering ceramics and producing glass, as well as performing high-temperature tests on ceramic materials, among many others.

Microwave heating uses 2.45 GHz Electromagnetic radiation to create oscillating molecules that provide heat energy within the material. Electric ovens (wire electrical conductive heating methods such as resistance) rely on heating the outside of the object using conduction and convection. Therefore, microwave heating is faster and more efficient than traditional electric heating methods.

To protect themselves from exposure to microwave radiation when operating the microwave furnace, operators must wear thermal protection gloves, safety glasses and heat-resistant clothing; make sure that the door interlock functions correctly; and, never operate the furnace when it has damaged seals.

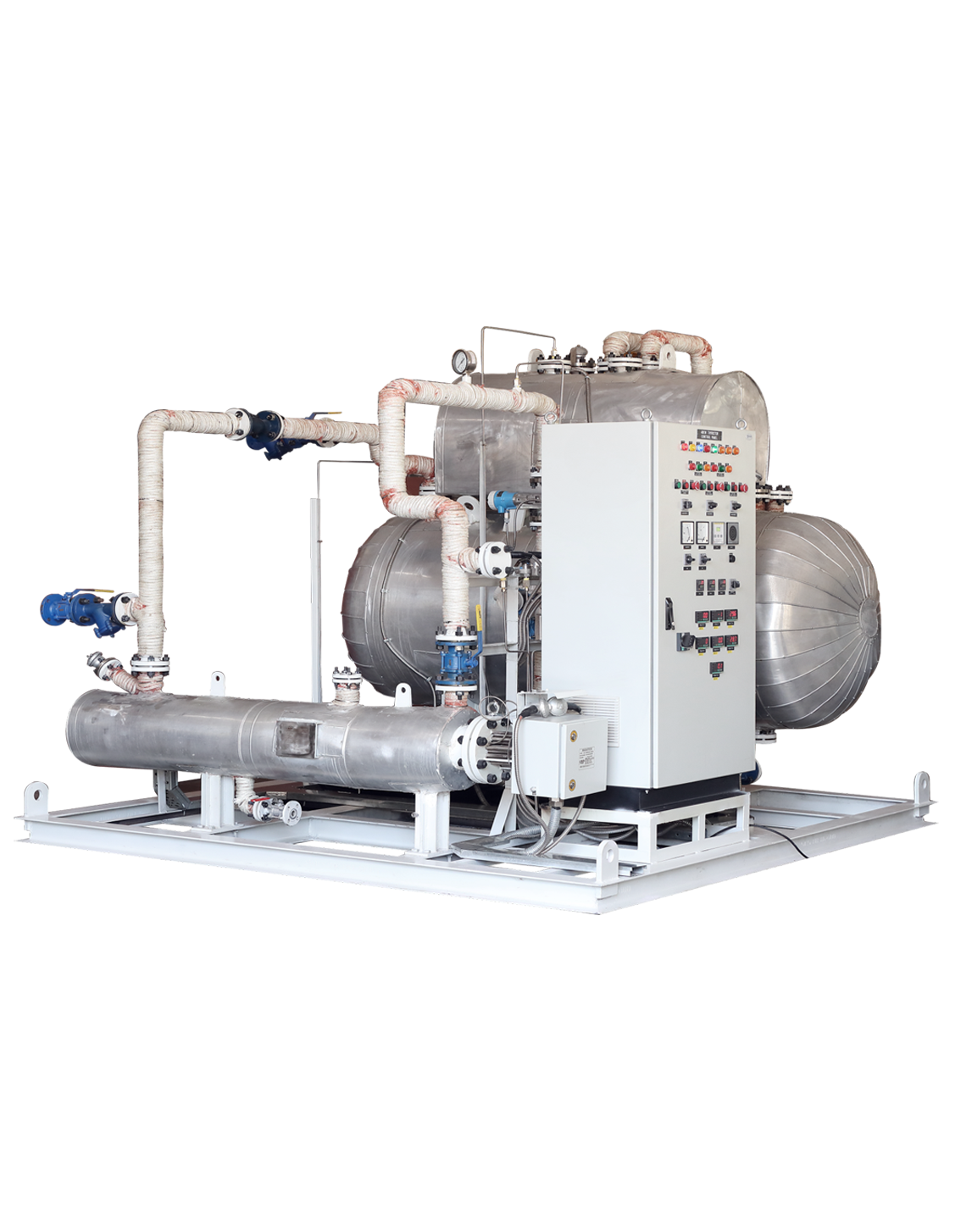

Tempsens Process Heaters are designed with: Tube-type Heating Elements, Heater Flange, Terminal Enclosure & Baffle Cage Assembly, Temperature Sensors, ASME Certified Pressure Vessel and thyristor control panel for power management and safety functionality.

To maintain optimal performance and longevity, process heaters need to be regularly maintained through the following procedures: inspecting resistance and insulation of the heating elements; checking the terminal connections; calibrating the temperature sensors; cleaning the control panel; and performing annual preventive maintenance according to both ASME and the hazardous area certifications.

Selecting a suitable heater for your process is dependent on a variety of factors such as the process fluid’s characteristics, how much heat (kW) is needed, what temperature/pressure you want to operate at, if your heater needs to be compatible with the materials being heated, what electrical supply you will have available, the type of installation environment, and what codes may be applicable. Tempsens can provide a custom designed heating solution to meet your exact requirements.

Common sheath materials include 304 and 316 stainless steel for corrosion resistance, INCOLOY for severe corrosive environments, copper for clean water applications, and titanium for highly corrosive chemical solutions. The heating element of the heat exchangers has nichrome (80/20) coils that utilize magnesium oxide insulation.

Over-the-side immersion heaters attach on top of tanks without requiring threaded openings, while screw plug heaters need threaded (NPT) fittings on tank walls. Over-the-side designs provide more heated length and coverage area, making them suitable for larger tanks.

Establish a schedule to routinely check for scale buildup on heating elements; ensure that the heating element is submerged sufficiently in the liquid; visually verify electrical connections; test the electrical insulation; and clean the outer surface of the heater sheath regularly to optimize heat transfer capability.

This unit is well suited for applications involving open-top tanks, vessels that have no access from the side walls, retrofitting existing systems, large container size, and processing systems operating at atmospheric pressure, storing petroleum products, handling chemicals and heating viscous fluids where draining the tank is not practical.

The muffle furnace is capable of producing temperatures between 500 °C and 1200 °C with a maximum temperature of 1200 °C and an accuracy of ±1 °C for high-precision thermal processing.

The steel and paint industries, the biotech industry, and the rice laboratory are industries that use muffle furnaces to perform the following: ash determination, annealing, coal analysis, and testing of materials.

Before opening the chamber of a muffle furnace, you should wear heat protection gloves and tongs. Ensure that the furnace is well ventilated and always check the door limit switch prior to opening the door.Additionally, give the muffle furnace ample time to cool before opening the chamber.

The heating elements of your muffle furnace should be inspected regularly, the controllers calibrated and all residue cleaned from the muffle furnace. The thermocouples should also be checked for proper accuracy and functioning to provide proper performance and extended life span of the muffle furnace.

Muffle furnaces typically can achieve much higher temperature ratings than the average laboratory oven. The maximum temperature that a muffle furnace is capable of reaching is 1200° Celsius, while laboratory ovens are used to dry or sterilise materials below 300° Celsius.

Air heaters are used to heat indoor spaces, industrial processes, and dry materials in settings like homes, factories, and laboratories.

An air heater operates by passing air over electrically charged resistance components that use convection to distribute heat.

Warm air heating provides rapid, uniform heat distribution, high efficiency, and precise temperature control.

The purpose of annealing is to relieve internal stresses, improve ductile properties, decrease hardness, recrystallize grain structure, and improve workability and machinability of manufactured parts made from metals in preparation for subsequent manufacturing operations.

In annealing furnaces you will regularly find gases such as nitrogen, argon, hydrogen, or forming gas (the nitrogen-hydrogen gas mixture). These gases are used based on common material needs to avoid oxidation and/or if certain surface properties are desired during the annealing cycle.

Tempsens is a leading manufacturer of annealing and industrial furnaces in India, providing innovative and customizable solutions in most of the metalworking industries.

The annealing temperature is determined by the material chemical composition and the desired properties of that metal. Most annealing temperatures range from 0.5 to 0.75 times the metal’s melting point (in Kelvin). The actual annealing temperature can be found in metallurgical specifications and/or heat treat specifications.

High-temperature silicone elastomers are continuously effective mechanically and electrically from -60°C to +200°C, whilst some special-grade silicone is certified suitable for intermittent exposures to +260°C and longer service life for automotive, food, and medical applications.

Yes—fine tolerance die cutting and CNC machining allows for practically any 2D geometric shape including multi-contour, internal cuts, notches, and irregular shaped, with consistent tolerances to ±0.5 mm for precise fitting that does not require modifications in the field.

The vulcanized silicone construction provides natural and inherent resistance to moisture (IP67/IP68 rating), oil, weak acids/bases, ozone, UV and extremes of temperature to make these heaters suitable for outdoor enclosures, washdown, and hazardous chemical processing environments for a verified rated service life of >10,000 hours.

Laboratory ovens are designed for precision applications with smaller capacities (4-200L), while industrial ovens handle larger volumes (up to 40,000L) with robust construction for continuous production environments.

Consider your temperature requirements, capacity needs, material characteristics, and processing frequency – our application engineers provide free consultation to match the optimal solution to your specific requirements.

We recommend annual calibration for critical applications and bi-annual preventive maintenance, though frequency may vary based on usage intensity and regulatory requirements in your industry.

With your maximum temperature requirements, need for chamber size, atmosphere control requirements, and how much production you need to accomplish. This will help you determine how you want to configure the best furnace or furnace designs.

Industrial heating furnace systems can process metals, ceramics, glass, composites, and proprietary alloys dependent on the temperature specifications and any atmosphere control options.

Yes, preventive maintenance such as heating element checking, thermocouple calibration, and insulation evaluation prevents degradation and maximizes equipment life.

With the exception of the benchtop Deben Fugaku, most Tempsens furnaces provide gas purging with inert gases such as argon, nitrogen, and hydrogen for specific processing needs.

Basic safety features include over-temperature protection, door interlocks, emergency shutdowns, and exhaust systems for hazardous vapor management.

Keep elements clean, check insulation regularly, calibrate sensors, and inspect door seals. These simple steps ensure top performance and extend furnace life.

Tempsens laboratory furnaces handle metals, ceramics, glass, polymers, composites, and a wide range of research samples—adapted to your temperature and atmosphere requirements.

Most of our lab furnaces run from 500°C to 1800°C, with specialty vacuum systems reaching up to 3000°C for the high-heat applications.

Tempsens Comfort Heating Solutions are trusted in every kind of residential setting where temperature precision or freeze protection is essential for comfort, safety, and protecting your home investment.

Tempsens advanced control systems automatically sense and respond to outdoor and indoor conditions, delivering just the right amount of heat for both mild and extreme environments—always maximizing energy efficiency.

Key benefits include: lower energy bills, improved family comfort and safety, reduced maintenance and repair costs, and better protection for your home and belongings compared to old-fashioned heating methods.

Our furnace heaters cover the full spectrum, from ambient up to 1600°C. Standard heaters reach up to 1100°C, while our silicon carbide and molybdenum disilicide elements are designed for the most demanding high-temperature applications up to 1600°C.

It comes down to understanding your process: operating temperature, atmosphere, power requirements, and furnace geometry. Tempsens’ technical team works with you to recommend a solution tailored to your exact needs—every step of the way

Routine visual inspections of heating elements and connections are key. Maintenance schedules depend on your specific heater and process conditions. Tempsens provides clear, practical guidelines with every installation to ensure safe, efficient, and long-lasting performance.

Industrial electric heaters utilize electrical power for heat generation, providing accurate control, reduced maintenance, and zero emissions. Gas heaters involve combustion and are commonly appropriate for larger-scale or open spaces but need ventilation and increased safety measures.

Industrial heating elements are used to heat liquids, gases, solids, or surfaces in a variety of industries, including oil and gas, chemical, pharmaceutical, power, and food processing. Applications include tank heating, pipeline tracking, furnace operations, and drying systems

Yes, Tempsens can develop unique industrial heating elements to fulfill special process needs, temperature ranges, mounting requirements, and environmental exposures — with the highest performance and safety.

Choose according to process temperature, medium (liquid/gas), environment (hazardous/safe), kind of heater (immersion, duct, circulation), wattage, and material compatibility. Taking professional help from industrial heaters manufacturers such as Tempsens assures the perfect fit.
